JINTIAN PACK CE 10-70 bags 420V high speed vertical packing machine

  • 1 - 1 Sets
    $20,000.00
  • >=2 Sets
    $16,000.00
Power:
2.2 KW
Model Number:
JT-420
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
plastic, PET/ PE( Polyester laminated polyethylene ) OPP/CPP( Oriented polypropylene laminated Cast polypropylene) OPP/ CE (Oriented polypropylene laminated Cellulose)
Packaging Type:

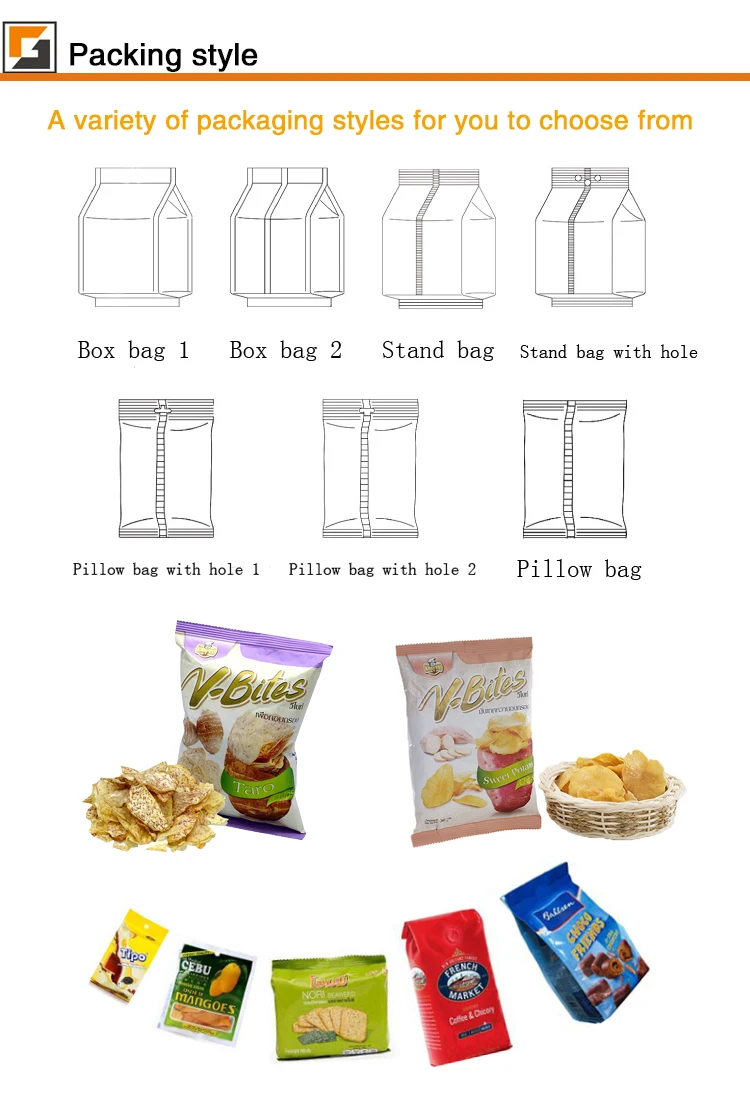

Stand-up Pouch, Bags, Pouch, pillow bag
Function:
FILLING, Wrapping, Sealing, weighing, date printing, feeding, bag making
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220 V
Place of Origin:
Guangdong, China
Brand Name:
JINTIAN PACK
Dimension(L*W*H):
990 * 1430 * 2200 mm
Certification:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
2 years
Key Selling Points:
Automatic
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
3 years
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
weighing range:
10-1000 g
weighing accuracy:
±0.5-1.5 g
bag length:
50-300 mm
bag width:
50-200 mm
packing speed:
10-70 bags/min
The max. width of film:
420 mm
packing film material:
opp/ cpp, opp/ ce, pet/ pe
Air consumption/ Gas consumption:
0.65 Mpa/ 0.3 cubic meter/ min
Power:
2.2 KW
Weight:
660 kg
Product Certification certification
CE Certified.
Valid from 2019-02-22 until 2024-02-21
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wooden cases
Port
Foshan/ Guangzhou/ Shenzhen/ Hongkong
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

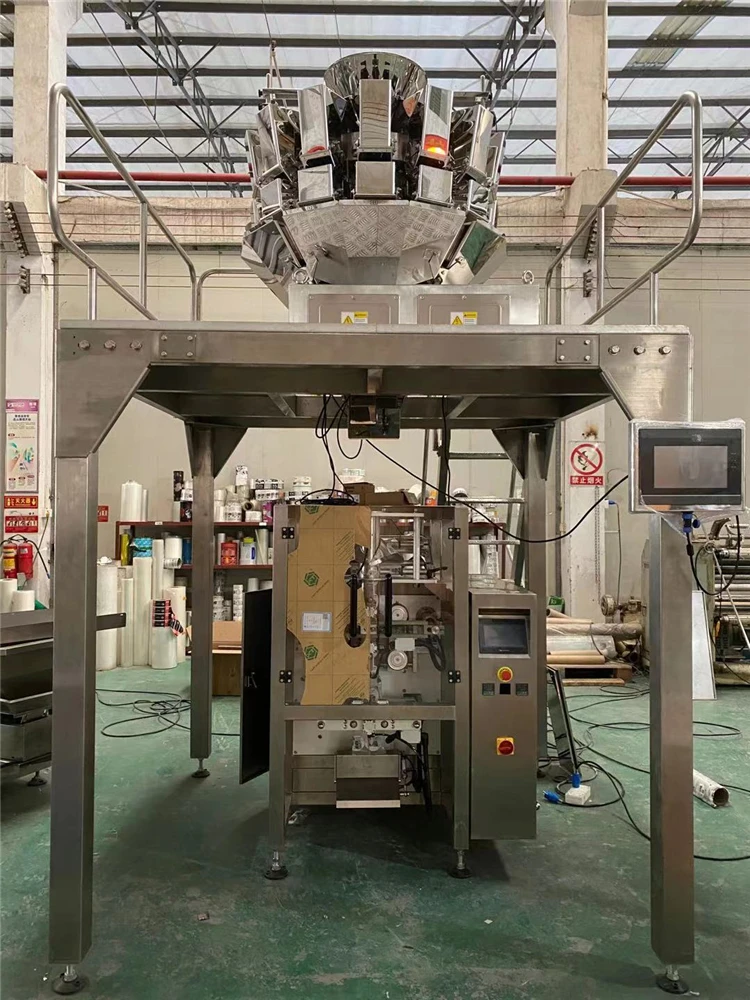

Machine show
JINTIAN PACK CE 10-70 bags 420V high speed vertical packing machine
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use and reprogrammable.
To be used on Jintian High quality machine, it makes your packing work easily and efficiently.
Product Paramenters
Vertical Packing machine
Model
JT-320
JT-420
JT-520
JT-720
JT-920
Film width
120-320 mm
420 mm
520 mm
720 mm
920 mm
Bag length
50-200 mm
80-300mm
80-400mm
80-500mm
80-650mm
Bag width
50-150 mm
50-200 mm
70-250 mm
60-350 mm
200-450 mm
Packing grams
50-150 ML
50-1500ML
50-3000ML
50-5000ML
100-10000ML
Packing speed
35-70bpm
35-70bpm
35-70bpm
35-70bpm
35-70bpm
Power
220V/380V/50/60 HZ
Machine dimension
970*680*1960 mm
1200*1500*1700
1500*1600*1800
1600*1700*1800
1600*1700*1800
Machine weight
300 kg
450 kg
500kg
600 kg
750 kg
We are packing machine factory ,we can customize for your needed
Details Images

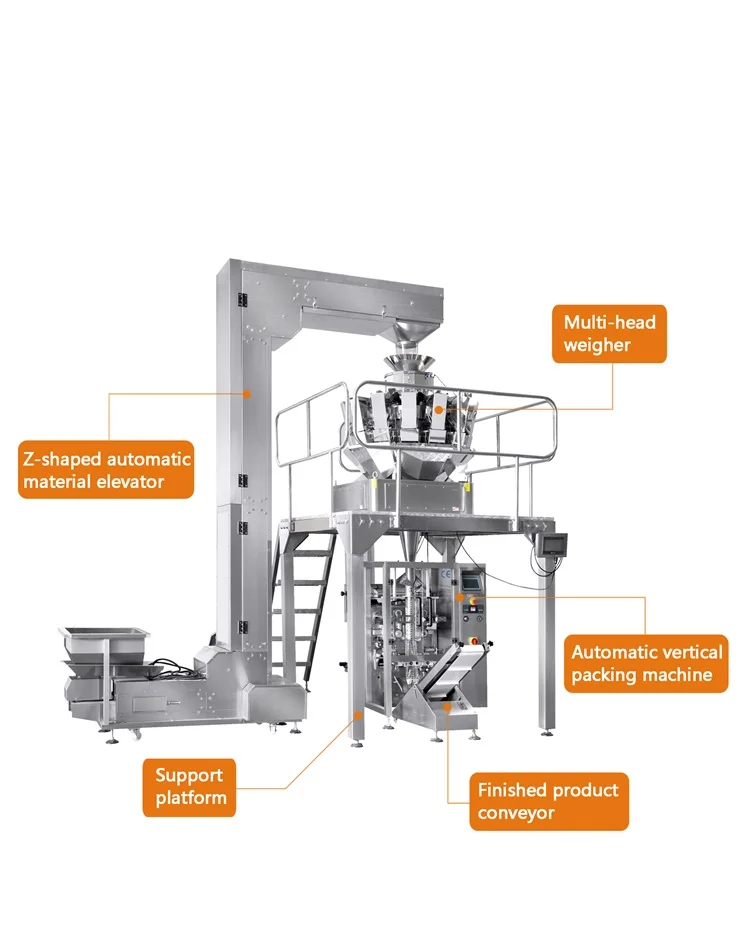

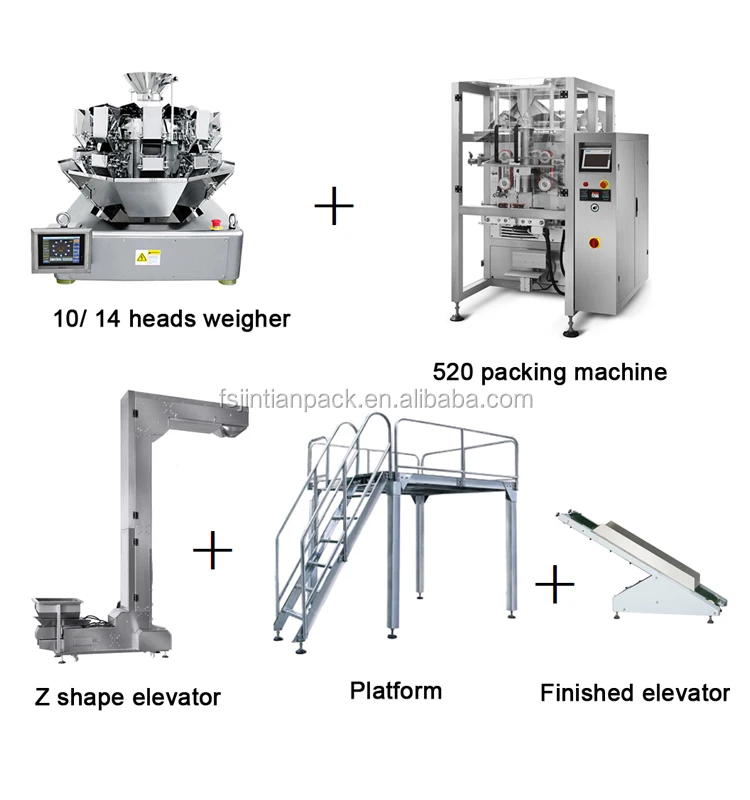

Product overview
The control screen controls the machine use Siemens
Electronic we use Mitsubishi/Siemens and well-known
Put the material into the automatic elevator
The elevator fills the material into the multi head weigher
Then bag making and packaging
Conveyor conveying finished products
